A 'ggplot2' geom to add text labels to transcription terminators

Source: R/geom_terminator_label.R
geom_terminator_label.Rd

geom_terminator_label() adds text labels to terminators drawn with geom_terminator().

Usage

geom_terminator_label(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  na.rm = FALSE,
  show.legend = FALSE,
  inherit.aes = FALSE,
  terminator_height = unit(4, "mm"),
  label_height = unit(3, "mm"),
  ...
)

Arguments

mapping, data, stat, position, na.rm, show.legend, inherit.aes, ...

As standard for ggplot2. inherit.aes is set to FALSE by default, as terminators are not likely to share any plot aesthetics other than y.

terminator_height

grid::unit() object giving the offset from the molecule line to the inner edge of the label's bounding box. Can be set as a negative value to position labels on the opposite side of the molecule line. Defaults to 4 mm, which provides a 1 mm gap between terminator and label when used with the default terminator_height of geom_terminator() (3 mm).

label_height

grid::unit() object giving the height of the label text. Defaults to 3 mm.

Details

Standard 'ggplot2' aesthetics for text are supported (see Aesthetics).

Aesthetics

  • x (required; position of the terminator)

  • y (required; molecule)

  • label (required; the label text)

  • colour

  • size

  • alpha

  • family

  • fontface

  • angle

See also

geom_terminator()

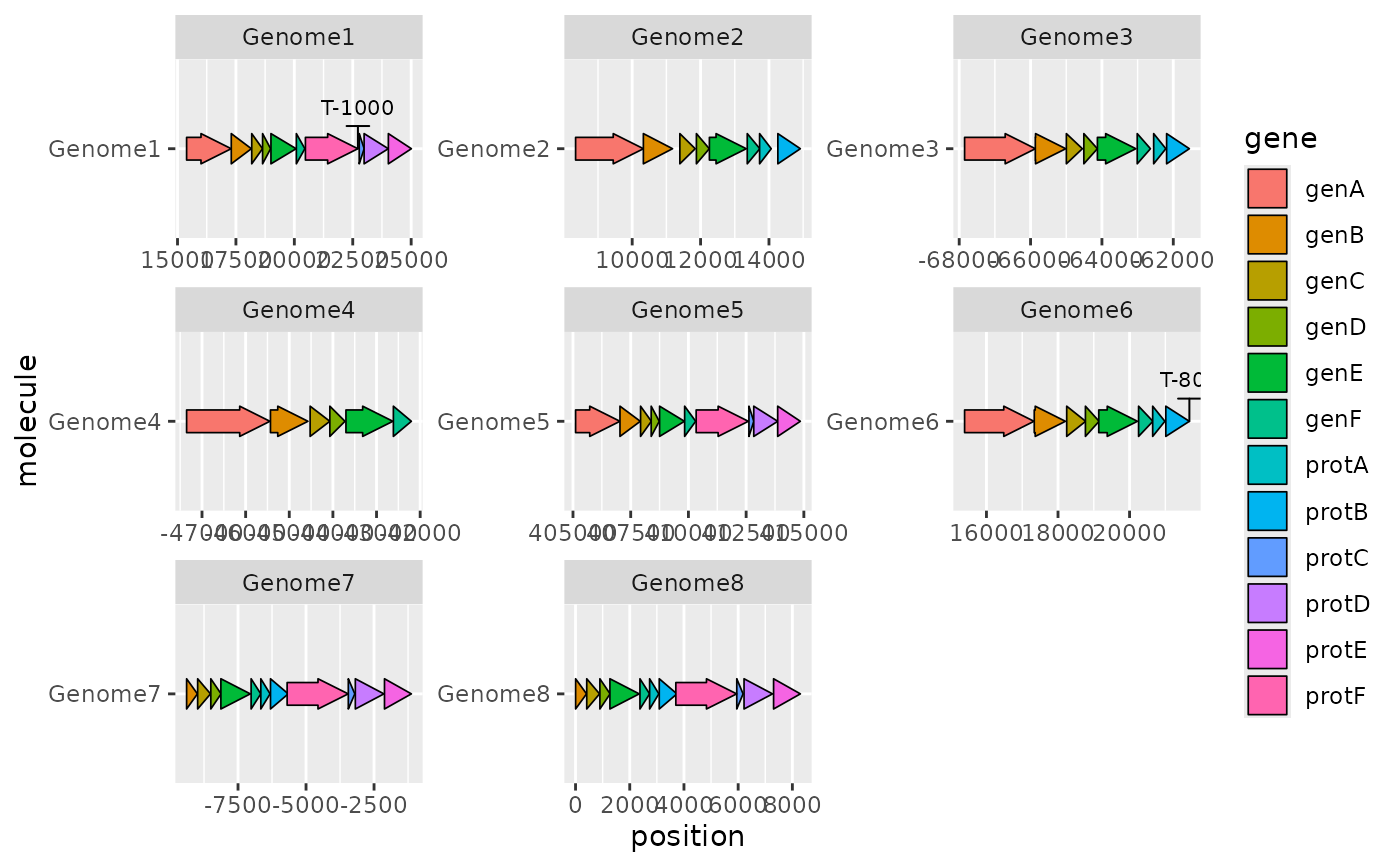

Examples


ggplot2::ggplot(example_genes, ggplot2::aes(xmin = start, xmax = end,
                                            y = molecule, fill = gene)) +
  geom_gene_arrow() +
  geom_terminator(data = example_terminators,
                  ggplot2::aes(x = position, y = molecule)) +
  geom_terminator_label(data = example_terminators,
                     ggplot2::aes(x = position, y = molecule, label = name)) +
  ggplot2::facet_wrap(~ molecule, scales = "free")
